机床特点 Features of machine tools
1.CKD51 系列双丝杠提升数控立式车床，采用双丝杠提升横梁。立柱、床身、横梁、底座特殊设计，使机床具有高刚性、
高稳定性、高精度、实现强切削功能。适用于硬质合金及陶瓷等刀具，对黑色金属、有色金属及部分非金属零件的内外
圆柱面、圆锥面、切槽、螺纹及回转曲面等进行粗、半精、精加工。
2. 立柱为热对称结构，通过计算机有限元计算，采取有效的隔振措施，具有高刚度、高抗震能力。
3. 导轨面采用高频淬火，硬度 HRC40-45 度。
4.CKD5112、CKD5116 两种机型，工作台采用滚动轴承导轨，主轴采用高精度圆锥孔双列圆柱滚子轴承，主轴轴向间隙采
用推力球轴承调节，极大提高了承载能力，运行速度更快，加工精度有质的提升，变速箱也重新设计，加大齿轮模数，齿
面加宽，齿轮重合度增，相应传动轴，轴承也有提升，具有承载能力大，耐冲击，抗摩擦，运行平稳，使用寿命长，运
转速度比普通立车高，加工精度高等特点，特别适合火车轮，桥梁支座等断续切削，重切削加工。

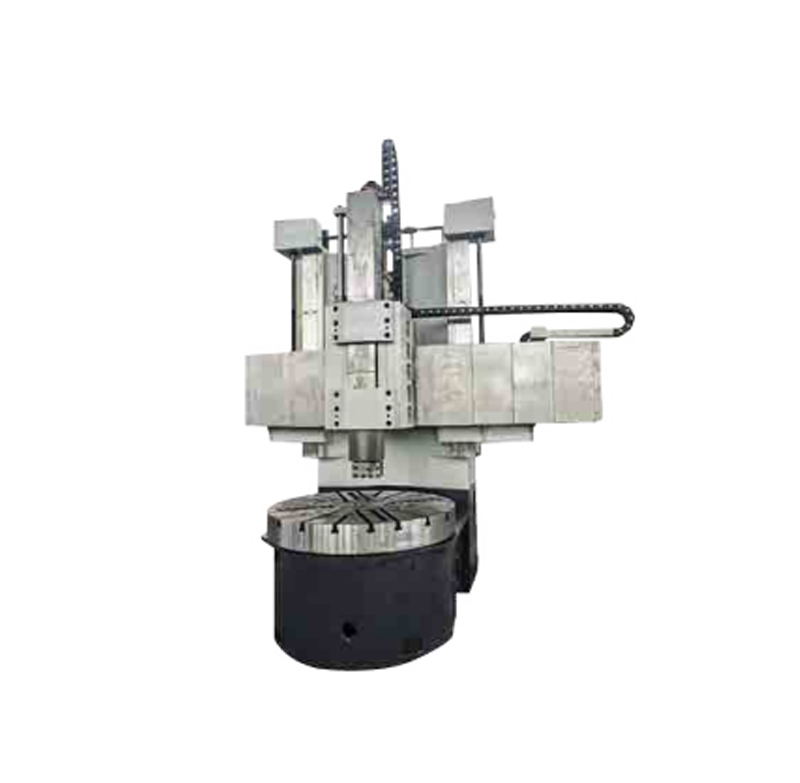

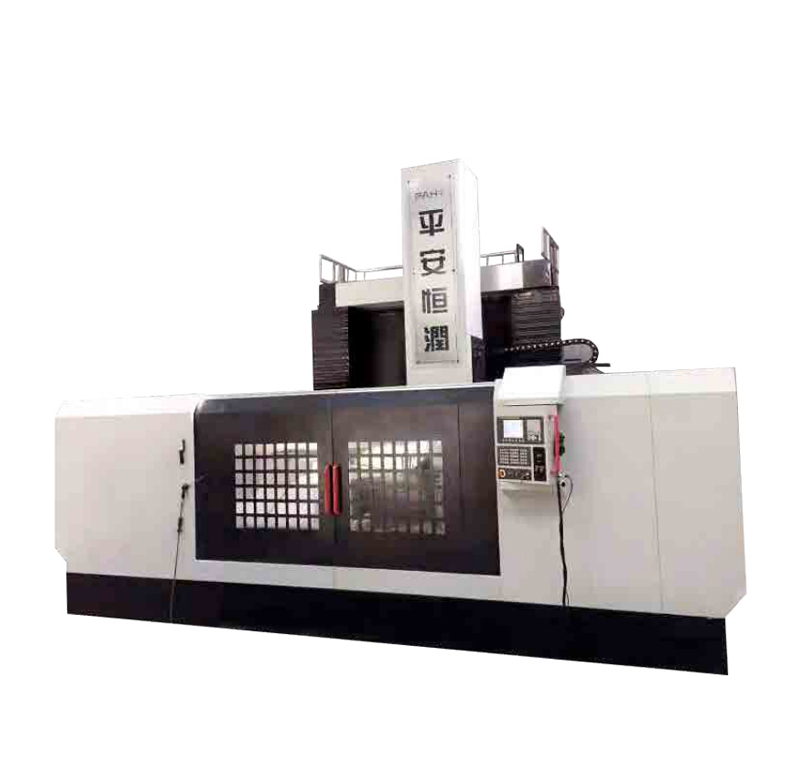

1. Ckd51 series double screw lifting CNC vertical lathe adopts double lead screw to lift beam. The special design of column, bed, beam and base makes the machine tool have high rigidity, high stability, high precision and powerful cutting function. It is suitable for cutting tools such as cemented carbide and ceramics to rough, semi finish and finish the internal and external cylindrical surface, conical surface, groove, thread and rotary surface of ferrous metal, non-ferrous metal and some non-metallic parts.
2. The column is a thermally symmetric structure, and effective vibration isolation measures are taken through computer finite element calculation, which has high stiffness and high seismic capacity.
3. The guide rail surface is quenched with high frequency, and the hardness is hrc40-45 degrees.
4. For ckd5112 and ckd5116 models, the table adopts rolling bearing guide rail, the main shaft adopts high-precision tapered hole double row cylindrical roller bearing, and the axial clearance of the main shaft adopts thrust ball bearing adjustment, which greatly improves the bearing capacity, the running speed is faster, and the machining accuracy is improved qualitatively. The gearbox is also redesigned, and the gear module is increased, the tooth surface is widened, and the gear coincidence degree is increased The transmission shaft and bearing are also improved. They have the characteristics of large bearing capacity, impact resistance, friction resistance, stable operation, long service life, higher running speed than ordinary vertical lathe, and high machining accuracy. They are especially suitable for intermittent cutting and heavy cutting of train wheels, bridge bearings, etc.
